SFSetOfHistograms Class Reference

#include <SFSetOfHistograms.h>

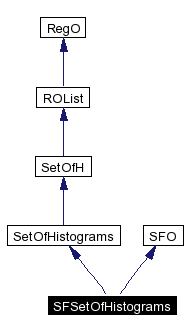

Inheritance diagram for SFSetOfHistograms:

Inheritance graph
[legend]
Collaboration diagram for SFSetOfHistograms:

Collaboration graph
[legend]
List of all members.

Detailed Description

A self-filling collection of 1-dimensional histograms that have the same axis.

Like a SetOfHistograms, a SFSetOfHistograms contains a set of 1-dimensional TH1F histograms; these histograms are (normally) all created by the constructor. The histograms share the same axis binning, and their names and titles are created using a BinningFun object that at the same time defines the number of histograms.

The histogram names will a concatenation of the name given by the user, and the bin name given by the BinningFun. The same applies to the title.

A SFSetOfHistograms is a self-filling set of histograms, NOT a set of self-filling histograms (which is a SFROList). This means that instead of calling a Fill() of each histogram, the SFSetOfHistograms object uses the BinningFun object to determine which of the histograms gets an entry, and then makes the entry in just that histogram.

A typical application of a SFSetOfHistograms is to generate a set of mass histograms depending on some kinematic quantity like t or W, to measure cross sections in different kinematic bins.

Using SFSetOfHistograms makes it unnecessary to define cut objects like "t between 0.05 and 0.1"

Author: Benno List, Jenny Böhme

Date
2005/05/31 13:36:00
Author
boehmej

Changelog:

Definition at line 61 of file SFSetOfHistograms.h.

Public Member Functions

 SFSetOfHistograms (const char *name_, const char *title_, const ROListPoR &hhl, const FloatFunPoR &xfun_, const BaseCutPoR &cut_, const FloatFunPoR &wfun_, const BinningFunPoR &binning_, const FillIteratorPoR &iter_=0)
 Constructor for a set of empty histograms.

 SFSetOfHistograms (const char *name_, const char *title_, Int_t nbinsx, Axis_t xlow, Axis_t xup, const ROListPoR &hhl, const FloatFunPoR &xfun_, const BaseCutPoR &cut_, const FloatFunPoR &wfun_, const BinningFunPoR &binning_, const FillIteratorPoR &iter_=0)
 Constructor for a set of histograms with equidistant axis binning.

 SFSetOfHistograms (const char *name_, const char *title_, Int_t nbinsx, const Double_t *xbins, const ROListPoR &hhl, const FloatFunPoR &xfun_, const BaseCutPoR &cut_, const FloatFunPoR &wfun_, const BinningFunPoR &binning_, const FillIteratorPoR &iter_=0)
 Constructor for a set of histograms with non-equidistant axis binning, taking doubles.

 SFSetOfHistograms (const char *name_, const char *title_, Int_t nbinsx, const Float_t *xbins, const ROListPoR &hhl, const FloatFunPoR &xfun_, const BaseCutPoR &cut_, const FloatFunPoR &wfun_, const BinningFunPoR &binning_, const FillIteratorPoR &iter_=0)
 Constructor for a set of histograms with non-equidistant axis binning, taking floats.

 SFSetOfHistograms (const char *name_, const char *title_, const Binning &axisbinning, const ROListPoR &hhl, const FloatFunPoR &xfun_, const BaseCutPoR &cut_, const FloatFunPoR &wfun_, const BinningFunPoR &binning_, const FillIteratorPoR &iter_=0)
 Constructor taking a Binning object.

virtual ~SFSetOfHistograms ()
 Virtual destructor.

virtual void Fill ()
 The Self-filler method.

FloatFun * getXFun () const
 Returns a pointer to the abscissa function object.

BaseCut * getCut () const
 Returns a pointer to the cut function object.

FloatFun * getWFun () const
 Returns a pointer to the weight function object.

FillIterator * getIter () const
 Returns a pointer to the iterator object.


Protected Member Functions

void checkIterators (const char *name)
 Checks consistency of iterators.

template<class Fun1, class Fun2> void checkTwoIterators (const char *name, const char *fun1name, Fun1 *fun1, const char *fun2name, Fun2 *fun2)
 Checks consistency of iterators of two function objects.

template<class Fun> void checkOneIterator (const char *name, const char *funname, Fun *fun)
 Checks consistency of iterator of function object with FillIterator.


Protected Attributes

FloatFun * xfun
 Function object defining abscissa (what to plot).

BaseCut * cut
 optional Function object defining a cut (0 means: no cut)

FloatFun * wfun
 optional Function object defining weight (0 means: weight 1)

FillIterator * iter
 optional Iterator object for more than 1 entry per Fill() call


Private Member Functions

 SFSetOfHistograms (const SFSetOfHistograms &source)
 Private copy constructor, left unimplemented: No copying!

SFSetOfHistograms & operator= (const SFSetOfHistograms &source)
 Private assignment operator, left unimplemented: No assignment!

Constructor & Destructor Documentation

SFSetOfHistograms::SFSetOfHistograms (  const char *  name_,
const char *  title_,
const ROListPoR &  hhl,
const FloatFunPoR &  xfun_,
const BaseCutPoR &  cut_,
const FloatFunPoR &  wfun_,
const BinningFunPoR &  binning_,
const FillIteratorPoR &  iter_ = 0
)


Constructor for a set of empty histograms.

Parameters:
name_  Common histogram name
title_  Common histogram title
hhl  ROList object where "this" will be registered
xfun_  Function object defining abscissa (what to plot)
cut_  optional Function object defining a cut (0 means: no cut)
wfun_  optional Function object defining weight (0 means: weight 1)
binning_  The BinningFun that assigns entries to histograms
iter_  optional Iterator object for more than 1 entry per Fill() call

Definition at line 33 of file SFSetOfHistograms.C.

References checkIterators().

SFSetOfHistograms::SFSetOfHistograms (  const char *  name_,
const char *  title_,
Int_t  nbinsx,
Axis_t  xlow,
Axis_t  xup,
const ROListPoR &  hhl,
const FloatFunPoR &  xfun_,
const BaseCutPoR &  cut_,
const FloatFunPoR &  wfun_,
const BinningFunPoR &  binning_,
const FillIteratorPoR &  iter_ = 0
)


Constructor for a set of histograms with equidistant axis binning.

Parameters:
name_  Common histogram name
title_  Common histogram title
nbinsx  Number of bins (as for TH1F)
xlow  Lower edge (as for TH1F)
xup  Upper edge (as for TH1F)
hhl  ROList object where "this" will be registered
xfun_  Function object defining abscissa (what to plot)
cut_  optional Function object defining a cut (0 means: no cut)
wfun_  optional Function object defining weight (0 means: weight 1)
binning_  The BinningFun that assigns entries to histograms
iter_  optional Iterator object for more than 1 entry per Fill() call

Definition at line 47 of file SFSetOfHistograms.C.

References checkIterators().

SFSetOfHistograms::SFSetOfHistograms (  const char *  name_,
const char *  title_,
Int_t  nbinsx,
const Double_t *  xbins,
const ROListPoR &  hhl,
const FloatFunPoR &  xfun_,
const BaseCutPoR &  cut_,
const FloatFunPoR &  wfun_,
const BinningFunPoR &  binning_,
const FillIteratorPoR &  iter_ = 0
)


Constructor for a set of histograms with non-equidistant axis binning, taking doubles.

Parameters:
name_  Common histogram name
title_  Common histogram title
nbinsx  Number of bins (as for TH1F)
xbins  Bin edges (as for TH1F)
hhl  ROList object where "this" will be registered
xfun_  Function object defining abscissa (what to plot)
cut_  optional Function object defining a cut (0 means: no cut)
wfun_  optional Function object defining weight (0 means: weight 1)
binning_  The BinningFun that assigns entries to histograms
iter_  optional Iterator object for more than 1 entry per Fill() call

Definition at line 64 of file SFSetOfHistograms.C.

References checkIterators().

SFSetOfHistograms::SFSetOfHistograms (  const char *  name_,
const char *  title_,
Int_t  nbinsx,
const Float_t *  xbins,
const ROListPoR &  hhl,
const FloatFunPoR &  xfun_,
const BaseCutPoR &  cut_,
const FloatFunPoR &  wfun_,
const BinningFunPoR &  binning_,
const FillIteratorPoR &  iter_ = 0
)


Constructor for a set of histograms with non-equidistant axis binning, taking floats.

Parameters:
name_  Common histogram name
title_  Common histogram title
nbinsx  Number of bins (as for TH1F)
xbins  Bin edges (as for TH1F)
hhl  ROList object where "this" will be registered
xfun_  Function object defining abscissa (what to plot)
cut_  optional Function object defining a cut (0 means: no cut)
wfun_  optional Function object defining weight (0 means: weight 1)
binning_  The BinningFun that assigns entries to histograms
iter_  optional Iterator object for more than 1 entry per Fill() call

Definition at line 80 of file SFSetOfHistograms.C.

References checkIterators().

SFSetOfHistograms::SFSetOfHistograms (  const char *  name_,
const char *  title_,
const Binning &  axisbinning,
const ROListPoR &  hhl,
const FloatFunPoR &  xfun_,
const BaseCutPoR &  cut_,
const FloatFunPoR &  wfun_,
const BinningFunPoR &  binning_,
const FillIteratorPoR &  iter_ = 0
)


Constructor taking a Binning object.

Parameters:
name_  Common histogram name
title_  Common histogram title
axisbinning  Defines the histogram binning
hhl  ROList object where "this" will be registered
xfun_  Function object defining abscissa (what to plot)
cut_  optional Function object defining a cut (0 means: no cut)
wfun_  optional Function object defining weight (0 means: weight 1)
binning_  The BinningFun that assigns entries to histograms
iter_  optional Iterator object for more than 1 entry per Fill() call

Definition at line 96 of file SFSetOfHistograms.C.

References checkIterators().

Member Function Documentation

void SFSetOfHistograms::Fill (   )  [virtual]


The Self-filler method.

Fill() evaluates the cut object to see whether an event fulfills the cut defined by the cut object, then evaluates the BinningFun object to see into which histogram to make an entry, then evaluates the xfun object to get the abscissa and the wfun object to obtain the weight. Optionally, the iter object serves as iterator.

Implements SFO.

Definition at line 114 of file SFSetOfHistograms.C.

References cut, SetOfH::getBinning(), ROList::getEntry(), BinningFun::isExclusive(), iter, FillIterator::next(), FillIterator::reset(), wfun, and xfun.

void SFSetOfHistograms::checkIterators (  const char *  name  )  [protected]


Checks consistency of iterators.

Parameters:
name  The histogram name

Definition at line 216 of file SFSetOfHistograms.C.

References checkOneIterator(), checkTwoIterators(), cut, SetOfH::getBinning(), wfun, and xfun.

Referenced by SFSetOfHistograms().

template<class Fun1, class Fun2>
void SFSetOfHistograms::checkTwoIterators (  const char *  name,
const char *  fun1name,
Fun1 *  fun1,
const char *  fun2name,
Fun2 *  fun2
)  [protected]


Checks consistency of iterators of two function objects.

Parameters:
name  The histogram name
fun1name  Name of function object 1
fun1  Function object 1
fun2name  Name of function object 2
fun2  Function object 2

Definition at line 172 of file SFSetOfHistograms.C.

Referenced by checkIterators().

template<class Fun>
void SFSetOfHistograms::checkOneIterator (  const char *  name,
const char *  funname,
Fun *  fun
)  [protected]


Checks consistency of iterator of function object with FillIterator.

Parameters:
name  The histogram name
funname  Name of function object
fun  Function object

Definition at line 186 of file SFSetOfHistograms.C.

References NamedO::getName(), and iter.

Referenced by checkIterators().

The documentation for this class was generated from the following files:
