SFH2F Class Reference

#include <SFH2F.h>

Inheritance diagram for SFH2F:

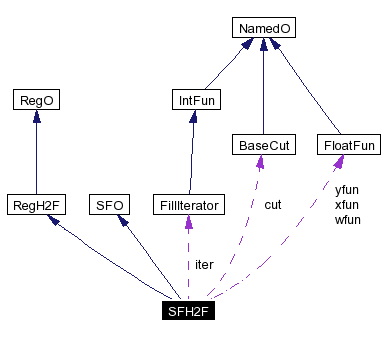

[legend]Collaboration diagram for SFH2F:

[legend]List of all members.

Detailed Description

A self-filling 2-dimensional TH2F histogram.

A self-filling SFH2F object is a TH2F that registers itself in a ROList histogram list when it is created. It has a Fill(S) method that fills one or several entries into the histogram. It uses FloatFun and BaseCut objects to know what to fill, and possibly FillIterator objects in the case that several entries are to be made in one Fill() call.

Author: Jenny Böhme, Benno List

Date: 2005/06/10 09:22:11

Author: blist

Changelog:

9.6.04 BL: Use ROListPoR, documentation ugraded, use const references to FitFunPoR, BaseCutPoR, and FillIteratorPoR, added constructor with Binning objects
10.6.04 BL: Derived from class SFO instead of SFH
15.7.04 BL: Added method checkIterators()
21.7.04 BL: Introduced checkTwoIterators, checkOneIterator
15.7.04 BL: Added methods getXFun etc

Definition at line 49 of file SFH2F.h.

Public Member Functions

SFH2F (const char *name, const char *title, Int_t nbinsx, Axis_t xlow, Axis_t xup, Int_t nbinsy, Axis_t ylow, Axis_t yup, const ROListPoR &hhl, const FloatFunPoR &xfun_, const FloatFunPoR &yfun_, const BaseCutPoR &cut_=0, const FloatFunPoR &wfun_=0, const FillIteratorPoR &iter_=0)

Constructor with equidistant x and y binnings.

SFH2F (const char *name, const char *title, Int_t nbinsx, const Double_t *xbins, Int_t nbinsy, Axis_t ylow, Axis_t yup, const ROListPoR &hhl, const FloatFunPoR &xfun_, const FloatFunPoR &yfun_, const BaseCutPoR &cut_=0, const FloatFunPoR &wfun_=0, const FillIteratorPoR &iter_=0)

Constructor with non-equidistant x and equidistant y binnings.

SFH2F (const char *name, const char *title, Int_t nbinsx, Axis_t xlow, Axis_t xup, Int_t nbinsy, const Double_t *ybins, const ROListPoR &hhl, const FloatFunPoR &xfun_, const FloatFunPoR &yfun_, const BaseCutPoR &cut_=0, const FloatFunPoR &wfun_=0, const FillIteratorPoR &iter_=0)

Constructor with equidistant x and non-equidistant y binnings.

SFH2F (const char *name, const char *title, Int_t nbinsx, const Double_t *xbins, Int_t nbinsy, const Double_t *ybins, const ROListPoR &hhl, const FloatFunPoR &xfun_, const FloatFunPoR &yfun_, const BaseCutPoR &cut_=0, const FloatFunPoR &wfun_=0, const FillIteratorPoR &iter_=0)

Constructor with non-equidistant x and y binnings taking doubles.

SFH2F (const char *name, const char *title, Int_t nbinsx, const Float_t *xbins, Int_t nbinsy, const Float_t *ybins, const ROListPoR &hhl, const FloatFunPoR &xfun_, const FloatFunPoR &yfun_, const BaseCutPoR &cut_=0, const FloatFunPoR &wfun_=0, const FillIteratorPoR &iter_=0)

Constructor with non-equidistant x and y binnings taking floats.

SFH2F (const char *name, const char *title, const Binning &xbinning, const Binning &ybinning, const ROListPoR &hhl, const FloatFunPoR &xfun_, const FloatFunPoR &yfun_, const BaseCutPoR &cut_=0, const FloatFunPoR &wfun_=0, const FillIteratorPoR &iter_=0)

Constructor taking 2 Binning objects.

virtual void Fill ()

The Self-filler method.

FloatFun * getXFun () const

Returns a pointer to the abscissa function object.

FloatFun * getYFun () const

Returns a pointer to the ordinate function object.

BaseCut * getCut () const

Returns a pointer to the cut function object.

FloatFun * getWFun () const

Returns a pointer to the weight function object.

FillIterator * getIter () const

Returns a pointer to the iterator object.

Protected Member Functions

void checkIterators (const char *name)

Checks consistency of iterators.

template<class Fun1, class Fun2> void checkTwoIterators (const char *name, const char *fun1name, Fun1 *fun1, const char *fun2name, Fun2 *fun2)

Checks consistency of iterators of two function objects.

template<class Fun> void checkOneIterator (const char *name, const char *funname, Fun *fun)

Function object.

Protected Attributes

FloatFun * xfun

Function object defining abscissa (what to plot on x).

FloatFun * yfun

Function object defining ordinate (what to plot on y).

BaseCut * cut

optional Function object defining a cut (0 means: no cut)

FloatFun * wfun

optional Function object defining weight (0 means: weight 1)

FillIterator * iter

optional Iterator object for more than 1 entry per Fill() call

Private Member Functions

SFH2F (const SFH2F &source)

Private copy constructor, left unimplemented: No copying!

SFH2F & operator= (const SFH2F &source)

Private assignment operator, left unimplemented: No assignment!

Constructor & Destructor Documentation

SFH2F::SFH2F ( const char * name,

const char * title,

Int_t nbinsx,

Axis_t xlow,

Axis_t xup,

Int_t nbinsy,

Axis_t ylow,

Axis_t yup,

const ROListPoR & hhl,

const FloatFunPoR & xfun_,

const FloatFunPoR & yfun_,

const BaseCutPoR & cut_ = 0,

const FloatFunPoR & wfun_ = 0,

const FillIteratorPoR & iter_ = 0

)

Constructor with equidistant x and y binnings.

Parameters:

name TH2F name

title TH2F title

nbinsx Number of x bins (as for TH2F)

xlow Lower x edge (as for TH2F)

xup Upper x edge (as for TH2F)

nbinsy Number of y bins (as for TH2F)

ylow Lower y edge (as for TH2F)

yup Upper y edge (as for TH2F)

hhl ROList object where "this" will be registered

xfun_ Function object defining abscissa (what to plot on x)

yfun_ Function object defining ordinate (what to plot on y)

cut_ optional Function object defining a cut (0 means: no cut)

wfun_ optional Function object defining weight (0 means: weight 1)

iter_ optional Iterator object for more than 1 entry per Fill() call

Definition at line 36 of file SFH2F.C.
References checkIterators().

SFH2F::SFH2F ( const char * name,

const char * title,

Int_t nbinsx,

const Double_t * xbins,

Int_t nbinsy,

Axis_t ylow,

Axis_t yup,

const ROListPoR & hhl,

const FloatFunPoR & xfun_,

const FloatFunPoR & yfun_,

const BaseCutPoR & cut_ = 0,

const FloatFunPoR & wfun_ = 0,

const FillIteratorPoR & iter_ = 0

)

Constructor with non-equidistant x and equidistant y binnings.

Parameters:

name TH2F name

title TH2F title

nbinsx Number of x bins (as for TH2F)

xbins Bin edges in x (as for TH2F)

nbinsy Number of y bins (as for TH2F)

ylow Lower y edge (as for TH2F)

yup Upper y edge (as for TH2F)

hhl ROList object where "this" will be registered

xfun_ Function object defining abscissa (what to plot on x)

yfun_ Function object defining ordinate (what to plot on y)

cut_ optional Function object defining a cut (0 means: no cut)

wfun_ optional Function object defining weight (0 means: weight 1)

iter_ optional Iterator object for more than 1 entry per Fill() call

Definition at line 52 of file SFH2F.C.
References checkIterators().

SFH2F::SFH2F ( const char * name,

const char * title,

Int_t nbinsx,

Axis_t xlow,

Axis_t xup,

Int_t nbinsy,

const Double_t * ybins,

const ROListPoR & hhl,

const FloatFunPoR & xfun_,

const FloatFunPoR & yfun_,

const BaseCutPoR & cut_ = 0,

const FloatFunPoR & wfun_ = 0,

const FillIteratorPoR & iter_ = 0

)

Constructor with equidistant x and non-equidistant y binnings.

Parameters:

name TH2F name

title TH2F title

nbinsx Number of x bins (as for TH2F)

xlow Lower x edge (as for TH2F)

xup Upper x edge (as for TH2F)

nbinsy Number of y bins (as for TH2F)

ybins Bin edges in y (as for TH2F)

hhl ROList object where "this" will be registered

xfun_ Function object defining abscissa (what to plot on x)

yfun_ Function object defining ordinate (what to plot on y)

cut_ optional Function object defining a cut (0 means: no cut)

wfun_ optional Function object defining weight (0 means: weight 1)

iter_ optional Iterator object for more than 1 entry per Fill() call

Definition at line 68 of file SFH2F.C.
References checkIterators().

SFH2F::SFH2F ( const char * name,

const char * title,

Int_t nbinsx,

const Double_t * xbins,

Int_t nbinsy,

const Double_t * ybins,

const ROListPoR & hhl,

const FloatFunPoR & xfun_,

const FloatFunPoR & yfun_,

const BaseCutPoR & cut_ = 0,

const FloatFunPoR & wfun_ = 0,

const FillIteratorPoR & iter_ = 0

)

Constructor with non-equidistant x and y binnings taking doubles.

Parameters:

name TH2F name

title TH2F title

nbinsx Number of x bins (as for TH2F)

xbins Bin edges in x (as for TH2F)

nbinsy Number of y bins (as for TH2F)

ybins Bin edges in y (as for TH2F)

hhl ROList object where "this" will be registered

xfun_ Function object defining abscissa (what to plot on x)

yfun_ Function object defining ordinate (what to plot on y)

cut_ optional Function object defining a cut (0 means: no cut)

wfun_ optional Function object defining weight (0 means: weight 1)

iter_ optional Iterator object for more than 1 entry per Fill() call

Definition at line 84 of file SFH2F.C.
References checkIterators().

SFH2F::SFH2F ( const char * name,

const char * title,

Int_t nbinsx,

const Float_t * xbins,

Int_t nbinsy,

const Float_t * ybins,

const ROListPoR & hhl,

const FloatFunPoR & xfun_,

const FloatFunPoR & yfun_,

const BaseCutPoR & cut_ = 0,

const FloatFunPoR & wfun_ = 0,

const FillIteratorPoR & iter_ = 0

)

Constructor with non-equidistant x and y binnings taking floats.

Parameters:

name TH2F name

title TH2F title

nbinsx Number of x bins (as for TH2F)

xbins Bin edges in x (as for TH2F)

nbinsy Number of y bins (as for TH2F)

ybins Bin edges in y (as for TH2F)

hhl ROList object where "this" will be registered

xfun_ Function object defining abscissa (what to plot on x)

yfun_ Function object defining ordinate (what to plot on y)

cut_ optional Function object defining a cut (0 means: no cut)

wfun_ optional Function object defining weight (0 means: weight 1)

iter_ optional Iterator object for more than 1 entry per Fill() call

Definition at line 99 of file SFH2F.C.
References checkIterators().

SFH2F::SFH2F ( const char * name,

const char * title,

const Binning & xbinning,

const Binning & ybinning,

const ROListPoR & hhl,

const FloatFunPoR & xfun_,

const FloatFunPoR & yfun_,

const BaseCutPoR & cut_ = 0,

const FloatFunPoR & wfun_ = 0,

const FillIteratorPoR & iter_ = 0

)

Constructor taking 2 Binning objects.

Parameters:

name TH2F name

title TH2F title

xbinning Defines the histogram x binning

ybinning Defines the histogram y binning

hhl ROList object where "this" will be registered

xfun_ Function object defining abscissa (what to plot on x)

yfun_ Function object defining ordinate (what to plot on y)

cut_ optional Function object defining a cut (0 means: no cut)

wfun_ optional Function object defining weight (0 means: weight 1)

iter_ optional Iterator object for more than 1 entry per Fill() call

Definition at line 114 of file SFH2F.C.
References checkIterators().

Member Function Documentation

void SFH2F::Fill ( ) [virtual]

The Self-filler method.
Fill() evaluates the cut object to see whether an event fulfills the cut defined by the cut object, then evaluates the xfun object to get the abscissa, yfun to obtain the ordinate, and the wfun object to obtain the weight.
Optionally, the iter object serves as iterator.
Implements SFO.
Definition at line 133 of file SFH2F.C.
References cut, iter, FillIterator::next(), FillIterator::reset(), wfun, xfun, and yfun.

void SFH2F::checkIterators ( const char * name ) [protected]

Checks consistency of iterators.

Parameters:

name The histogram name

Definition at line 190 of file SFH2F.C.
References checkOneIterator(), checkTwoIterators(), cut, wfun, xfun, and yfun.
Referenced by SFH2F().

template<class Fun1, class Fun2>

void SFH2F::checkTwoIterators ( const char * name,

const char * fun1name,

Fun1 * fun1,

const char * fun2name,

Fun2 * fun2

) [protected]

Checks consistency of iterators of two function objects.
Function object 2
Parameters:

name The histogram name

fun1name Name of function object 1

fun1 Function object 1

fun2name Name of function object 2

Definition at line 146 of file SFH2F.C.
Referenced by checkIterators().

template<class Fun>

void SFH2F::checkOneIterator ( const char * name,

const char * funname,

Fun * fun

) [protected]

Function object.

Parameters:

name The histogram name

funname Name of function object

Definition at line 160 of file SFH2F.C.
References NamedO::getName(), and iter.
Referenced by checkIterators().

The documentation for this class was generated from the following files:

Generated on Thu Oct 26 12:55:12 2006 for SFH by

1.3.2


Public Member Functions
	SFH2F (const char name, const char title, Int_t nbinsx, Axis_t xlow, Axis_t xup, Int_t nbinsy, Axis_t ylow, Axis_t yup, const ROListPoR &hhl, const FloatFunPoR &xfun_, const FloatFunPoR &yfun_, const BaseCutPoR &cut_=0, const FloatFunPoR &wfun_=0, const FillIteratorPoR &iter_=0)
	Constructor with equidistant x and y binnings.
	SFH2F (const char name, const char title, Int_t nbinsx, const Double_t *xbins, Int_t nbinsy, Axis_t ylow, Axis_t yup, const ROListPoR &hhl, const FloatFunPoR &xfun_, const FloatFunPoR &yfun_, const BaseCutPoR &cut_=0, const FloatFunPoR &wfun_=0, const FillIteratorPoR &iter_=0)
	Constructor with non-equidistant x and equidistant y binnings.
	SFH2F (const char name, const char title, Int_t nbinsx, Axis_t xlow, Axis_t xup, Int_t nbinsy, const Double_t *ybins, const ROListPoR &hhl, const FloatFunPoR &xfun_, const FloatFunPoR &yfun_, const BaseCutPoR &cut_=0, const FloatFunPoR &wfun_=0, const FillIteratorPoR &iter_=0)
	Constructor with equidistant x and non-equidistant y binnings.
	SFH2F (const char name, const char title, Int_t nbinsx, const Double_t xbins, Int_t nbinsy, const Double_t ybins, const ROListPoR &hhl, const FloatFunPoR &xfun_, const FloatFunPoR &yfun_, const BaseCutPoR &cut_=0, const FloatFunPoR &wfun_=0, const FillIteratorPoR &iter_=0)
	Constructor with non-equidistant x and y binnings taking doubles.
	SFH2F (const char name, const char title, Int_t nbinsx, const Float_t xbins, Int_t nbinsy, const Float_t ybins, const ROListPoR &hhl, const FloatFunPoR &xfun_, const FloatFunPoR &yfun_, const BaseCutPoR &cut_=0, const FloatFunPoR &wfun_=0, const FillIteratorPoR &iter_=0)
	Constructor with non-equidistant x and y binnings taking floats.
	SFH2F (const char name, const char title, const Binning &xbinning, const Binning &ybinning, const ROListPoR &hhl, const FloatFunPoR &xfun_, const FloatFunPoR &yfun_, const BaseCutPoR &cut_=0, const FloatFunPoR &wfun_=0, const FillIteratorPoR &iter_=0)
	Constructor taking 2 Binning objects.
virtual void	Fill ()
	The Self-filler method.
FloatFun *	getXFun () const
	Returns a pointer to the abscissa function object.
FloatFun *	getYFun () const
	Returns a pointer to the ordinate function object.
BaseCut *	getCut () const
	Returns a pointer to the cut function object.
FloatFun *	getWFun () const
	Returns a pointer to the weight function object.
FillIterator *	getIter () const
	Returns a pointer to the iterator object.
Protected Member Functions
void	checkIterators (const char *name)
	Checks consistency of iterators.
template<class Fun1, class Fun2> void	checkTwoIterators (const char name, const char fun1name, Fun1 fun1, const char fun2name, Fun2 *fun2)
	Checks consistency of iterators of two function objects.
template<class Fun> void	checkOneIterator (const char name, const char funname, Fun *fun)
	Function object.
Protected Attributes
FloatFun *	xfun
	Function object defining abscissa (what to plot on x).
FloatFun *	yfun
	Function object defining ordinate (what to plot on y).
BaseCut *	cut
	optional Function object defining a cut (0 means: no cut)
FloatFun *	wfun
	optional Function object defining weight (0 means: weight 1)
FillIterator *	iter
	optional Iterator object for more than 1 entry per Fill() call
Private Member Functions
	SFH2F (const SFH2F &source)
	Private copy constructor, left unimplemented: No copying!
SFH2F &	operator= (const SFH2F &source)
	Private assignment operator, left unimplemented: No assignment!
