FEL Beam Dynamics Group - Main Linac - Klystrons
|

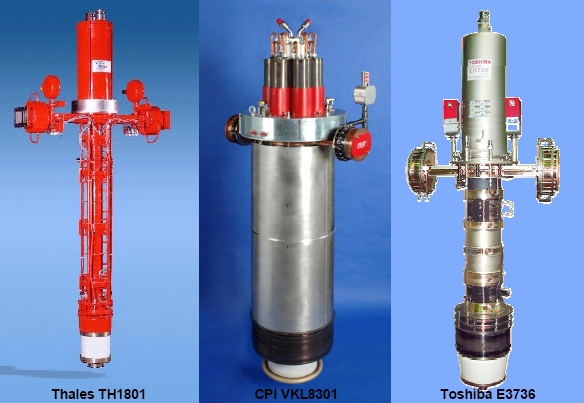

Thales TH1801, CPI VKL8301 and Toshiba E3736 Multibeam Klystron.
|
| |
|
Klystron parameters
|
|
|
|
nominal
|
min.⁄max.
|
|
Frequency
|
[GHz]
|
1.3
|
1.3
|
|
RF Pulse Duration
|
[ms]
|
1.38
|
⁄1.5
|
|
Repetition Rate
|
[Hz]
|
10
|
⁄≈50 (low PPeak)
|
|
Cathode Voltage
|
[kV]
|
95
|
120
|
|
Beam Current
|
[A]
|
103
|
140
|
|
HV Pulse Duration
|
[ms]
|
1.57
|
0.2⁄1.7
|
|
Microperveance
|
&nsbp;
|
3.5
|
3.3⁄3.7
|
|
RF Peak Power
|
[MW]
|
5.2
|
10
|
|
|
|
|
