FEL Beam Dynamics Group - Cavities (side view)
|

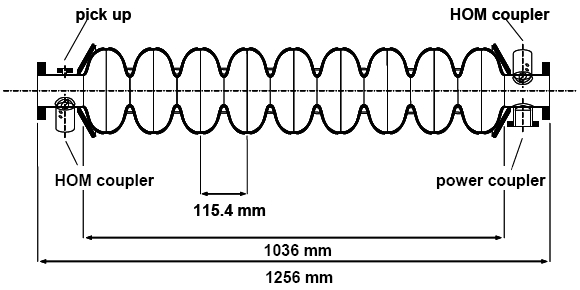

Side view of the 9-cell cavity with the main power coupler port (right), the pick up probe (left),
and two higher-order mode (HOM) couplers.
|
| |
|
Parameters of the 9-cell cavity
|
|
Type of accelerating structure
|
|
Standing wave
|
|
Accelerating mode
|
|
TM010, π-mode
|
|
Acc. gradient (104 active modules) at 20 GeV
|
ƒRF [MHz]
|
1300
|
|
Nominal gradient
|
Eacc [MV⁄m]
|
23.6
|
|
Quality factor
|
Q0
|
>1010
|
|
Active length
|
L [m]
|
1.038
|
|
Cell-to-cell coupling
|
kcc [%]
|
1.87
|
|
Iris diameter
|
[mm]
|
70
|
|
R⁄Q
|
[Ω]
|
1036
|
|
Epeak ⁄ Eacc
|
|
2.0
|
|
Bpeak ⁄ Eacc
|
[mT ⁄ MV⁄m]
|
4.26
|
|
Tuning range
|
[kHz]
|
±300
|
|
Δƒ ⁄ ΔL
|
[kHz ⁄ mm]
|
35
|
|
Lorentz force detuning constant
|
KLor[Hz ⁄ (MV⁄m)2]
|
1
|
|
Qext of input coupler
|
|
4.6 × 106
|
|
Cavity bandwidth f ⁄ Qext
|
[Hz] FWHM
|
283
|
|
Fill time
|
[µs]
|
780
|
|
# of HOM couplers
|
|
2
|
|
(note: R = V2⁄P, where P is the dissipated power
and V the peak voltage in the equivalent LCR circuit)
|
|
|
|
|
