Abrupt motion sharpens X-ray pulses

Spectrally broad X-ray pulses can be “sharpened” by purely mechanical means

A team of theoretical and experimental physicists lead by the Max Planck Institute for Nuclear Physics (MPIK) has developed and realized a method to “sharpen” spectrally broad X-ray pulses by purely mechanical means. It is based on fast motions, precisely synchronized with the pulses, of a target interacting with the X-ray light. Thereby, photons are redistributed within the X-ray pulse to the desired spectral region, as the scientists demonstrated at DESYs X-ray source PETRA III and the European Synchrotron Radiation Facility ESRF. The researchers present their work in the journal “Science”.

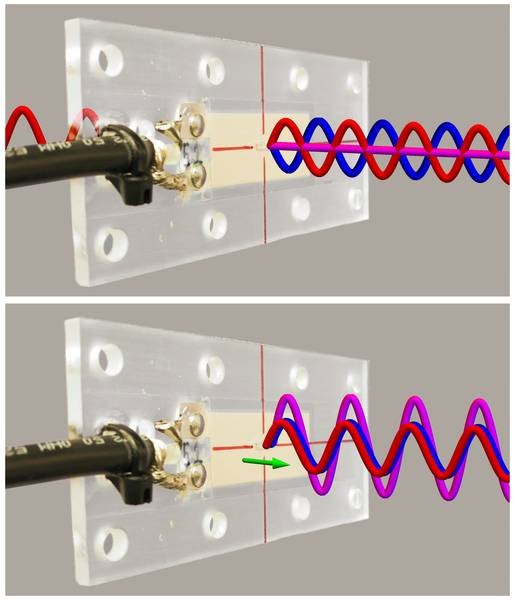

Before motion (top) the light scattered by the target (blue) extinguishes the excitation (red). After the motion (bottom), the scattered light is displaced and the waves enhance each other (magenta). Credit: MPIK Linkhttps://idw-online.de/de/image?id=290969&size=screen
The novel method can intensify the spectrally broad X-ray pulses in a narrow spectral region. Such X-ray pulses are desired for a number of fundamental physics experiments or are a prerequisite for some precision experiments. The key roles are played by a piezoelectric transducer which performs precise motions upon electric signals and by a thin iron foil. Precisely synchronized motions redistribute the photons within the X-ray pulse to a narrow wavelength region. “Our method doesn’t waste photons like a monochromator that only cuts off the undesired wavelengths”, explains Jörg Evers from the division of Christoph Keitel at MPIK. “On the other hand, we don’t need to increase the overall energy of the X-ray pulse.”

The experiments were conducted at ESRF and at DESY's measuring station P01 at the X-ray source PETRA III. The method is based on the Mössbauer effect; therefore, the iron foil is enriched with the isotope 57Fe. In the solid state, this “Mössbauer isotope” may absorb and emit photons without recoil. Thus, the iron foil absorbs an extremely small section of the relatively broad X-ray pulse and “resonantly” emits this light after a certain time delay. Within this short time span, the piezoelectric transducer moves the iron foil such that the resonant wavelengths are enhanced at the expenses of the “outer” wavelengths due to interference effects. “This displacement by half the resonant wavelength must be controlled to less than a tenth of a nanometer and take place within a few nanoseconds”, explains first author Kilian Heeg from the group of Jörg Evers at MPIK.

In the future, the new method could be advanced for deployment in the routine operation of X-ray sources like synchrotrons or free-electron lasers. The increased intensity can shorten measurement times and enable measurements that currently have too low signal rates. Further, higher signal rates translate into better energy, temporal and spatial resolution. On the other hand, the technique opens the possibility to track motions on atomic scales.



Reference: Spectral narrowing of x-ray pulses for precision spectroscopy with nuclear resonances; K. P. Heeg, A. Kaldun, C. Strohm, P. Reiser, C. Ott, R. Subramanian, D. Lentrodt, J. Haber, H.-C. Wille, S. Goerttler, R. Rüffer, C. H. Keitel, R. Röhlsberger, T. Pfeifer, J. Evers; Science, 2017; DOI: 10.1126/science.aan3512



Source: Max Planck Institute for Nuclear Physics
